Best Price Heavy Duty Storage Racking System Narrow Aisle Pallet
Rack

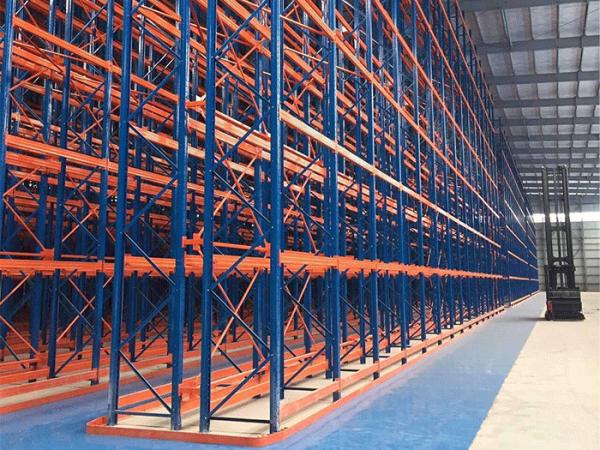

Narrow aisle pallet racking or a very narrow aisle racking system
(VNA) is an adaptation of traditional pallet racking systems
compacted into a very small area. Because the narrow aisle racking
dimensions are almost half of standard racking systems, you can
store up to 50% more product in the same space.Despite the
compactness of the space, VNA is a flexible system because the
height and depth of the racking depend on your storage needs.Narrow
aisle racking typically has less than 6 feet between the racks,
compared to 12 feet for standard pallet racking. However, because
of the limited space between the aisles, you will need to use
turret trucks that turn the load instead of the whole vehicle.
Feature:
1.Increased Storage Capacity
Narrow aisle racking maximizes the use of space by allowing for
higher storage density. It requires less floor space for the
aisles, freeing up more space for new pallet racking bays so you
can store 40-50% more inventory. The pallets can also be stacked
higher than a standard pallet racking system, reducing the square
foot or cost per pallet stored.
2.Efficient Space Utilization
Narrow pallet racking provides efficient space utilization by
reducing the aisle width and storing more products within the same
footprint. This means that the space that would have been used for
aisles in traditional racking systems can be used for additional
storage, eliminating the need for offsite storage or building
expansion.
3.Flexibility in Design and Configurations
Narrow aisle pallet racking maintains direct access to all the unit
loads, making it a fully accessible and selective system. It can
also be customized to meet your specific needs, improving pick
rates and overall efficiency. The simple assembly, disassembly, and
re-adaption of load levels allow you to easily adjust the system to
changes in your storage needs.
Installing storage cranes can convert VNA racking into an automated
storage system. You can also convert your current selective racking
system to a VNA, contact us for more information on how to do this.
4.Better Accuracy in Inventory Management and Tracking
Narrow aisle racking can improve accuracy in inventory management
and tracking by making it easier to locate products. This can help
reduce errors and ensure products are picked and replenished
accurately.
5.Enhanced Safety and Security
Narrow pallet racking maximizes space utilization while ensuring
the safety of workers and products. It can be customized to include
features such as automatic locking systems and fire protection
measures, which enhance safety and security.
| Product Name | Van pallet rack |
| Material | Q235 Steel |
| Certification | ISO 9001, SGS |
| Design | CAD |
| Length | 1000-8000mm |
| Width | 900-1500mm |
| Finished | Power coated |
| Used | forklift operation; industry normal warehouse, cold warehosue |
Advantages of VNA pallet racking
1. Silimar with selective pallet rack, but decrease 50% aisle space
2. The height can be over 30m
3. Height adjustable
Specification
| Support Beam | customized length, thickness 2.0mm |
| Upright | 80*60;90*70;100*70;120*95;thickness is 2-2.5mm |
| Adjustable | Adjusted by 50mm pitch. |
| Surface Finish | Powder coating & Galvanized |
| Color | RAL System, Accept Customized |
Product Display:
Union Drive in pallet rack upright and Beam section:
Certificate
CE, ISO
Our Exhibition
Q&A
1.I am intersted in VNA pallet rack, but I am not that
professional, whatshould we do firstly?
Firstly, you give your warehouse size, tell us your requirement for
the rack size, layers and loading capacity for us to make design
2. What is your warranty?
1 year guarantee for free accesssories and 10 years for the rack
will not fall.
3. Do you support installation?
We provide all sets installation drawing, you can choose find
installation team yourself or we find, our enginner can arrive on
site for guidance.
4.What to purchase your product?
Design drawing →Confirm drawing→Quotation→PI→Confirm PI→Arrange
30%deposit→Manufacture→QC inspect→Pay balance→Shipping
5.What’s your advantage?
1) Factory price: factory direct sale competitive price.
2)Static Calculation for Seismic Factor
3)Competitive Design&Structure Manufacturer
4)FreeConsultationon StorageSolutions
